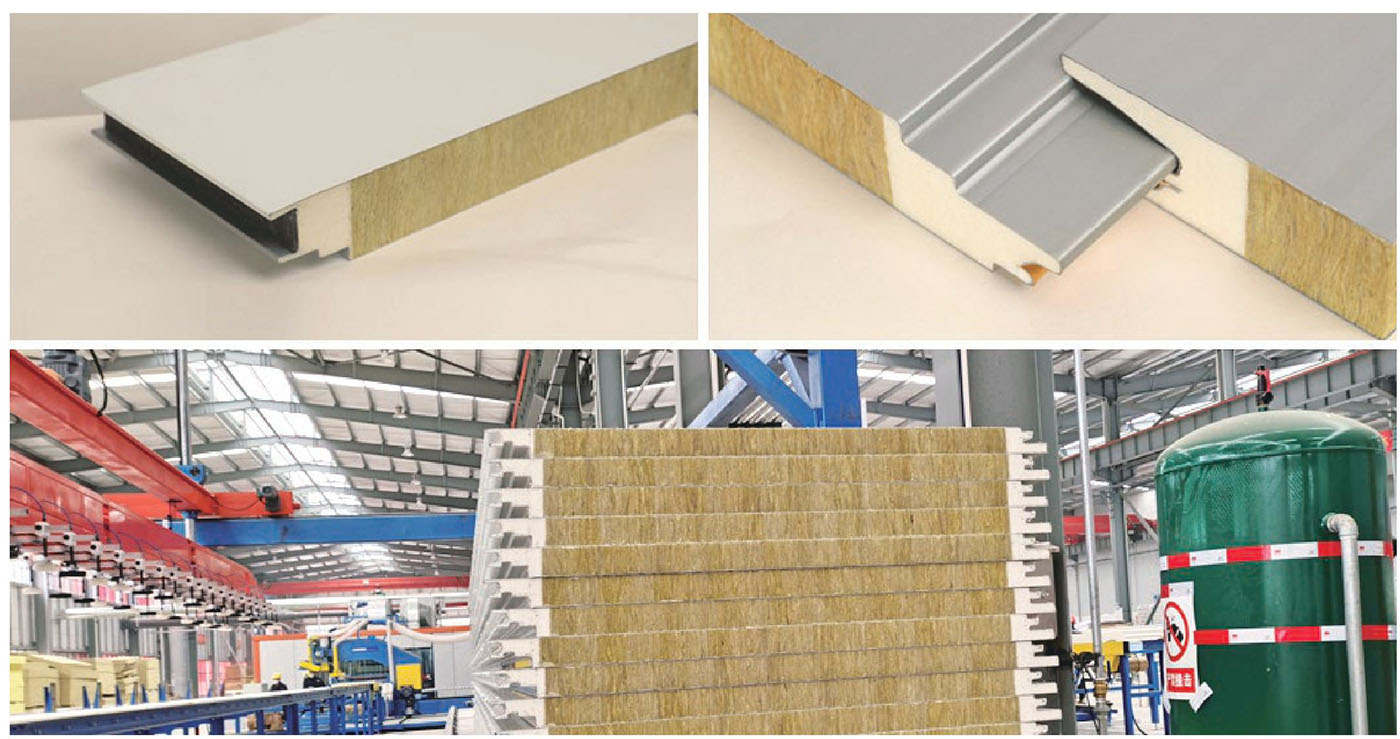

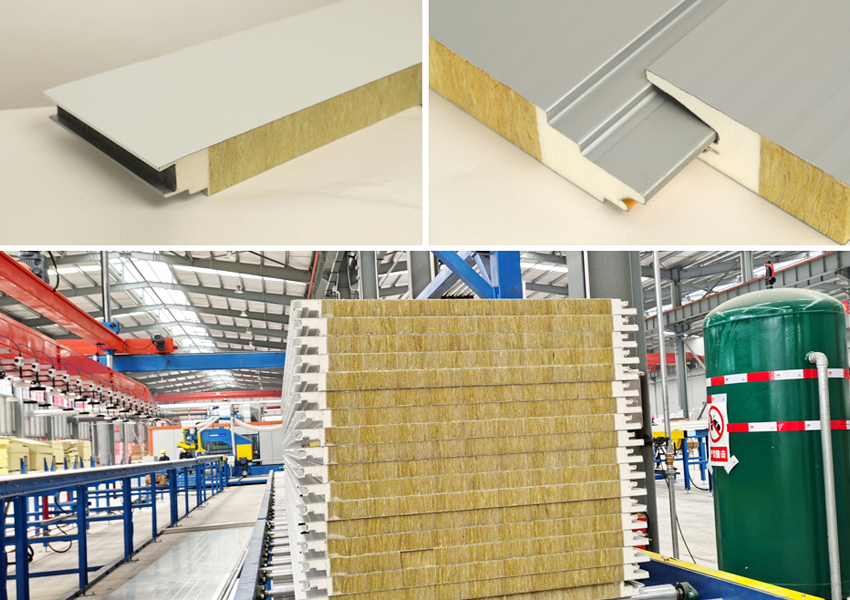

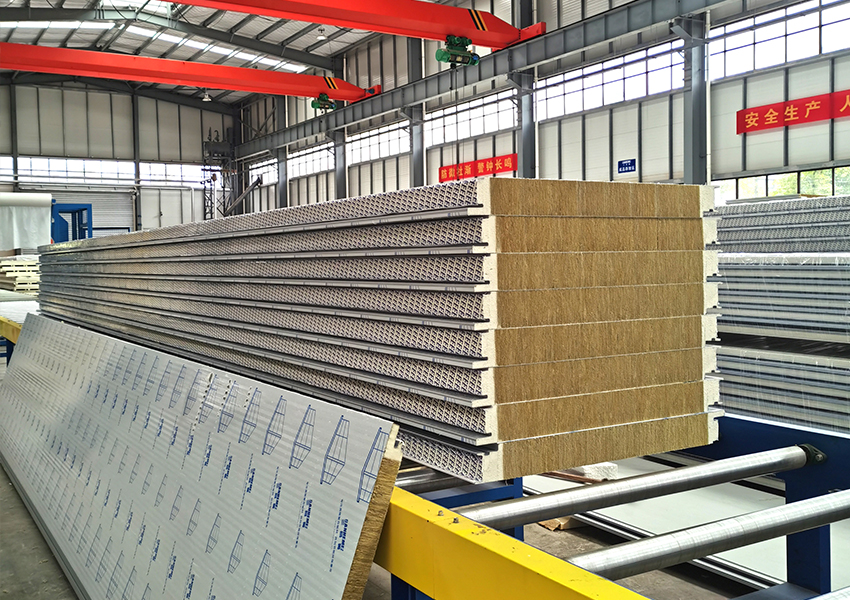

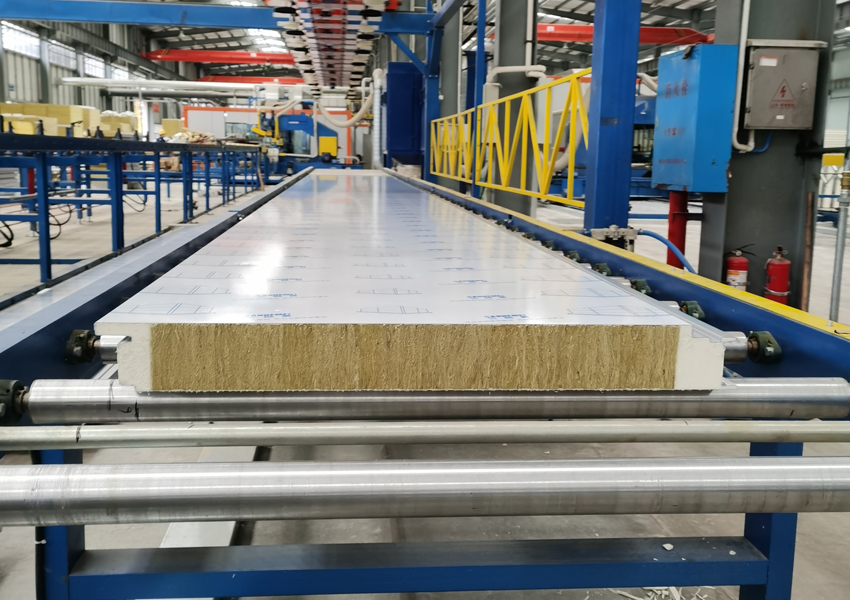

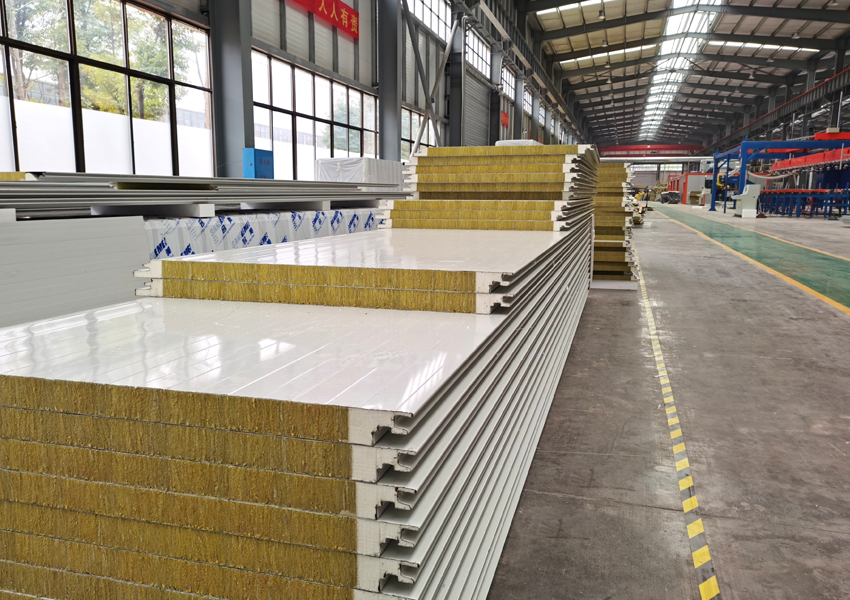

Rock Mineral Wool Sandwich Panels are composed of 3 layers, the external and internal is two dyed Galvanized or Aluminum corrugated plates, and core high density Rock Mineral Wool (Mineral Wool).

Introduction of KIBO's Wall Sandwich Panels

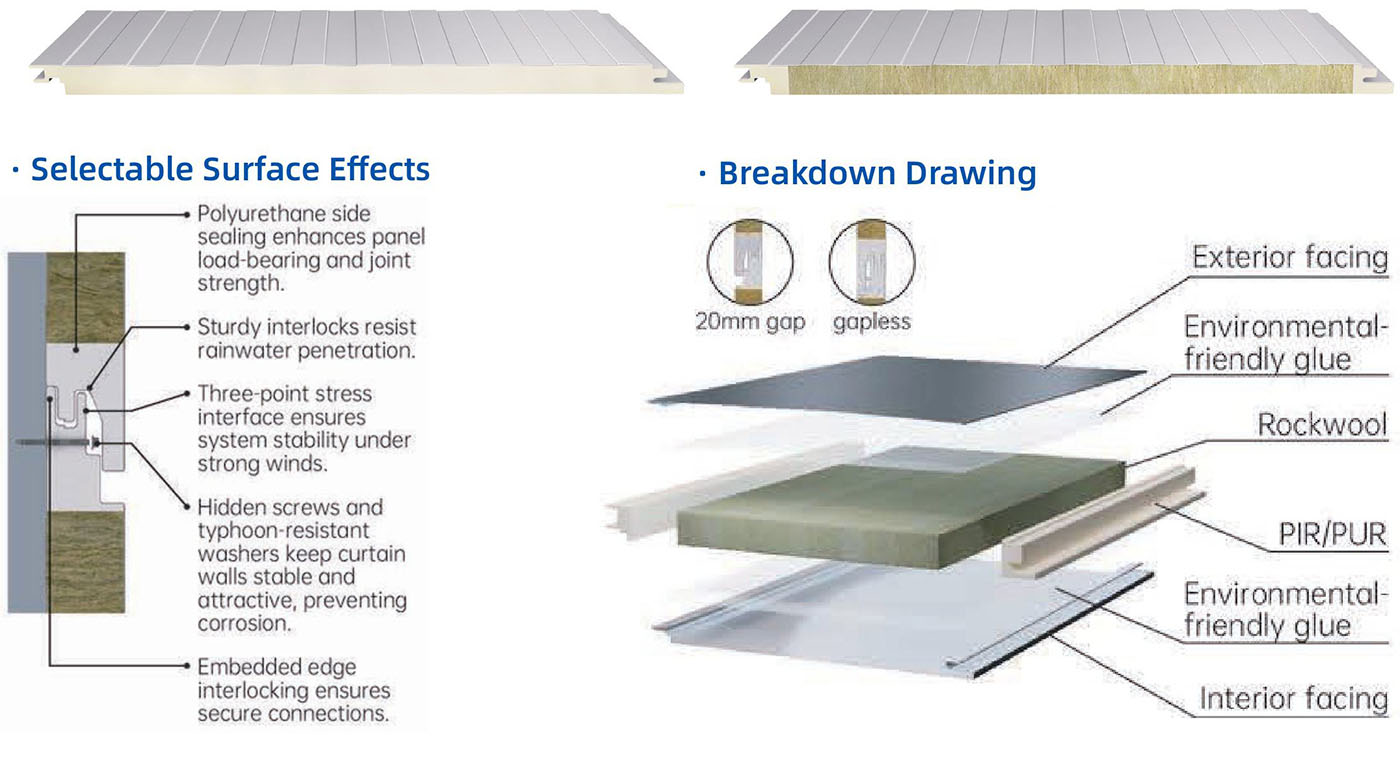

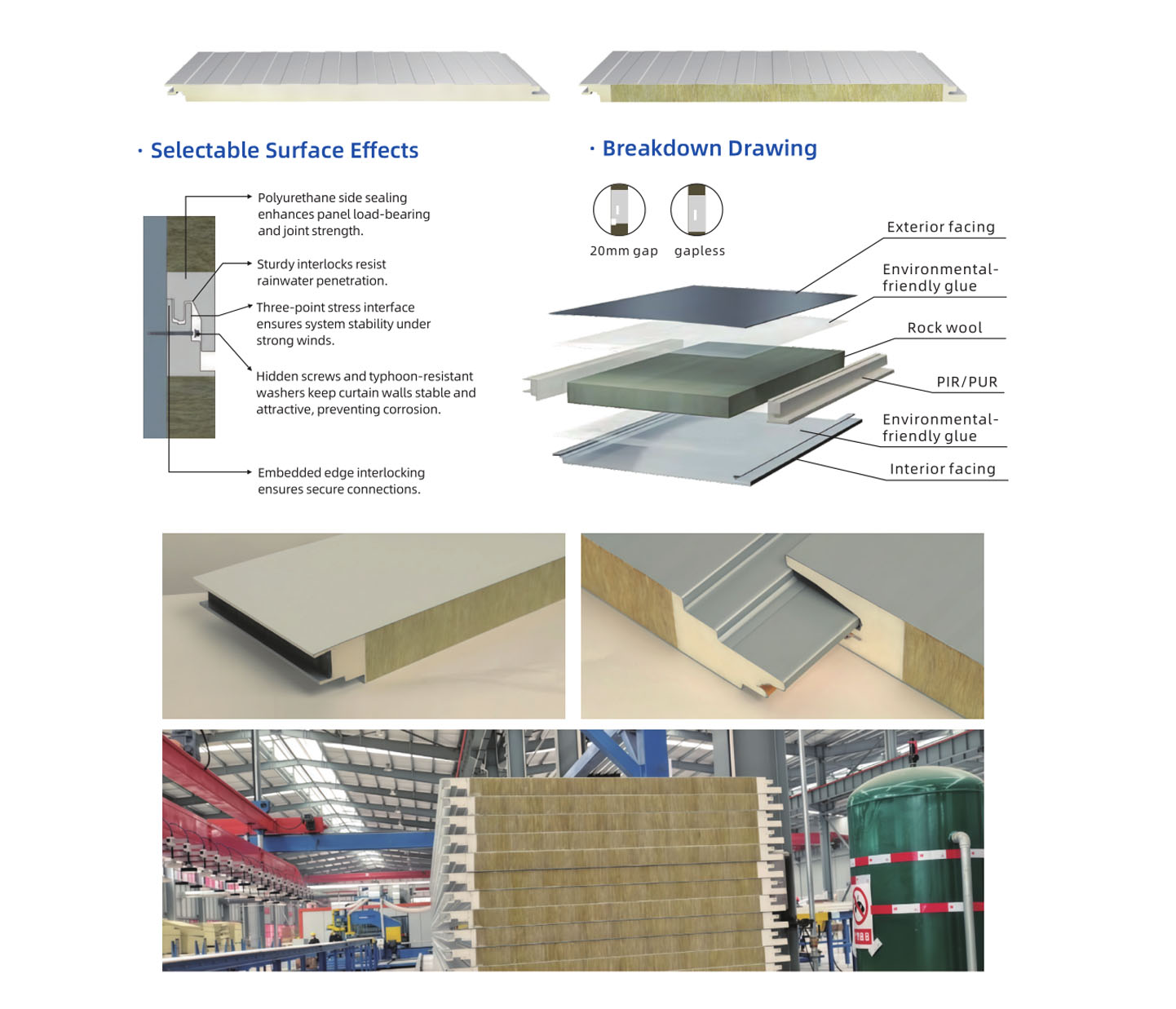

Kibo's Wall Sandwich Panels feature a rock wool corematerial with polyurethane edge sealing. This effectively combines the non-combustibilityand high temperature resistance of rock wool with the insulation and durability of polyurethane. lt has A-grade fire resistance, a thermal conductivity coefficient of <0.042/W (m·K)good sound absorption, excellent load-bearing capacity, high bending strength, waterresistance, rot resistance, wide temperature tolerance, and easy installation.

SPECIFICATIONS

• Panel Thickness: 50mm, 75mm,100mm

• Standard Facings: steel sheet coated with polyester paint, 25µm Hign   Zinc sheet with Zn 50 – Zn 180g, Stainless steel

• Core material [kg/m³]: Density 100/120

• Thermal Conductivity [W/mK]: 0.043

• Acoustic Insulation [dB]: 27

• Standard Length [m]: 2m-12m

• Effective width [mm]: 1000mm

• Fire resistance: Non-flammable


CHARACTERISTICS:

The rock mineral wool insulating core has high fire resistance and excellent sound insulation. Wall sandwich panels with a mineral wool insulation core offer high fire resistance and thermal insulation properties.

• Rock mineral wool insulation core

• High fire resistance

• Vertical or horizontal installation

• Standard lengths are from 2 m to 10 m (max. 12 m)

• Thickness of insulation core 50, 75, 100, 125, 150, and 200 mm

Application Scene:

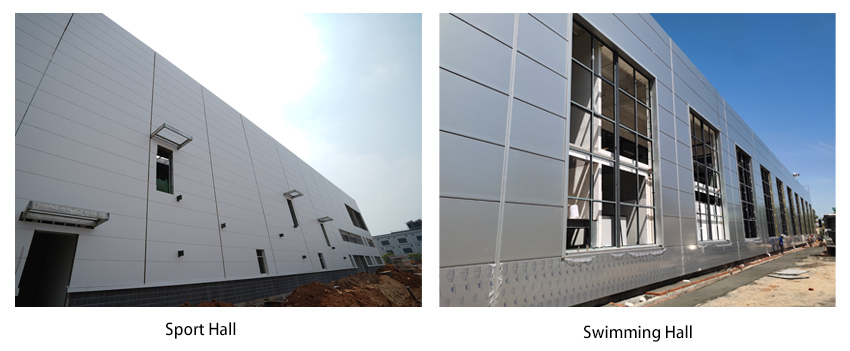

ROCK MINERAL WOOL WALL SANDWICH PANELS are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure.

• Industrial buildings

• Store houses and logistic centres

• Commercial buildings and offices

• Food industry facilities

• Agricultural objects

• Sport halls
